| Product | |

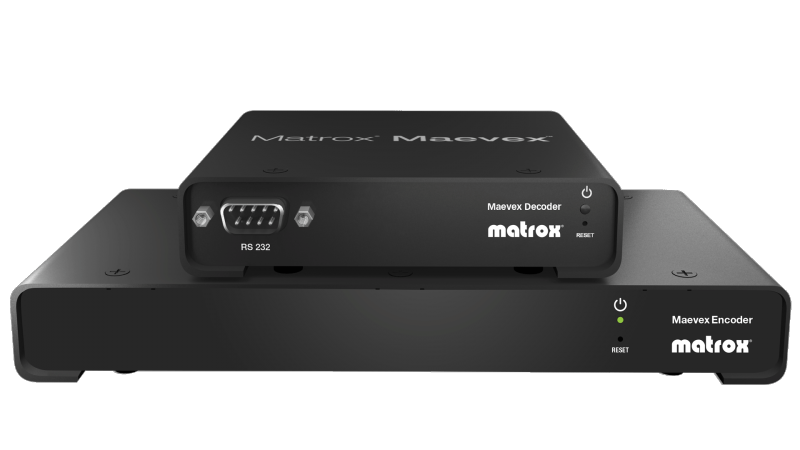

| Part Number | Encoder—MVX-E5150FDecoder—MVX-D5150F |
| Form Factor |
Encoder: Standalone appliance Rack-mountable: 1U, 2-unit density (horizontal) Decoder: Standalone appliance Rack-mountable: 1U, 1/3 rack (horizontal) |
| Connectivity | |
| Video Input |
Encoder Formats: HDMI with digital L-PCM audio DVI via DVI-to-HDMI adapter |
| Video Output |
Encoder: HDMI (Type A) Lcal pass-through w/o scaling or confidence preview w/ optional scalingDVI via HDMI to DVI-D adapter Local pass-through w/o scaling or confidence preview w/ optional scalingHD15, Analog VGA Confidence preview w/ optional scalingDecoder: HDMI (Type A) Independent failsafe output |
| Audio Input |
HDMI digital LPCM two-channel audio Analog stereo audio (3.5 mm) |
| Audio Output |
HDMI digital LPCM two-channel stereo audio 3.5 mm analog stereo audio |
| Network Connector |
Encoder: 1x RJ45 with status LED indicatorsDecoder: 2x RJ45 with status LED indicator (fully switched) |
| Performance | |
| Video Input Resolutions |
Encoder: Resolutions up to 1920x1080p60, 1920×1200 (60Hz) and many more wide-screen and standard-definition resolutions |
| Video Output Resolutions |
Encoder: Resolutions up to 1920x1080p60, 1920x1200p60, 1920x1080i50, 1920x1080i60 Decoder: Resolutions up to 1920x1080p60, 1920×1200 (60Hz) and many more wide-screen and standard-definition resolutions |
| Video and Audio Processing | |
| Video Scaling |
Encoder: Scaled output (i.e., 1080p60 input/720p60 scaled output)Destination cropping support |
| Audio Encoding Format | MPEG-4 AAC-LC |
| Audio Sampling Frequency | 32 kHz44.1 kHz48 kHz |
| Audio Bitrates |
96 Kbps 128 Kbps 192 Kbps 256 Kbps |
| ProcAmp Control | Contrast, brightness, saturation, hue |
| Codec | |
| Video Encoding Formats | H.264/MPEG-4 Part 10 (AVC) |
| Encoding Profiles | Main (MP) |
| Encoder Bitrates Range | 100 Kbps to 25 Mbps |
| Encoding Rate Control |
Configurable GOP (Group Of Pictures) Structure Constant Bitrate (CBR) Favor quality Favor speed Variable Bitrate (VBR) |
| Video Decoding Formats | H.264/MPEG-4 Part 10 (AVC) |
| Decoder Bitrates Range | 100 Kbps to 25 Mbps |
| Encoding | |
| Encoding Capability | Single-Channel HD: Up to 1920x1080p60 and 1920×1200 (56Hz) and many more wide-screen and standard-definition resolutions |
| Decoding | |
| Decoding Capability | Single-Channel HD: Up to 1920x1080p60 and 1920×1200 (56Hz) and many more wide-screen and standard-definition resolutions |
| Recording | |
| File Format | MP4 |
| Filename |
Encoder: Customizable prefix (optional) |
| Timestamp |
Encoder: Automatic in filename |
| Programmability |
Encoder: Duration File frequency Maximum file length Start date and time |
| Recording Locations |
Encoder: Shared network drive or NAS |
| Full Frame Rate |
Encoder: Yes |
| Network | |
| Network Standard |
100/1000 base-T Ethernet: 100 Mbps half/full duplex, 1000 Mbps full duplex |
| Routing Scheme | UnicastMulticastMulti-unicast |
| IP Addressing | IPv4DHCP (default) and static IP |
| Streaming Protocols | RTSP (TCP), RTCP & RTP (UDP) – all required |
| Command and Control | HTTPS |
| Physical | |
| Product Dimensions |
Encoder: 8.50 x 1.02 x 4.00 inches 21.59 x 2.59 x 10.16 cmDecoder: 5.05 x 1.02 x 4.29 inches 12.83 x 2.59 x 10.9 cm |
| Unit Weight |
Encoder: 378 g (excl. external power supply and power cords) Decoder: 286g (excl. external power supply and power cords) |
| Cooling | Fanless |
| Hardware & Software | |
| Hardware Included |
Maevex 5150 Encoder Appliance CAT5E Ethernet cable, RJ45 male to male, 6’/182.88cm DVI adapter – DVI-D male to HDMI female 3.5mm analog stereo audio cable, male to male, 6’/182.88cm Quick setup guide and release notes (if applicable) Power supply and power cords: • 100-240 V a.c. In, 5 V d.c. Out, 15W • DIN4 Locking Power Connector Power Cords Included: US, EU, UKMaevex 5150 Decoder Appliance Quick setup guide and release notes (if applicable) Power supply and power cords: • 100-240 V a.c. In, 5 V d.c. Out, 15W • DIN4 Locking Power Connector • Power Cords Included: US, EU, UK |
| Accessories (sold separately) |
Rack Mount Kit (RMK-19TR-A) • Rack mounting shelf (19 in / 48.26 cm) • Pan head Phillips screws (4x 10-32 x 3/4 in) • Pan head Phillips screws (4x 12-24 x 3/4 in) • Flat head Phillips screws (6x M3 x 6 mm)Angled Bracket Kit P/N: RMK-6BRKTF • See user guide for details |
| Software |
PowerStream Plus—dedicated Windows® application (free download)PowerStream Plus API for Windows and Linux* Full-access to entire feature set via API .NET 4.5.1 or higher, standalone library and Mono 5.2 or higher for Linux REST API Available for lower-level development |
| Environmental | |
| Operating Conditions | Temperature: 0 to 45 degrees CelsiusHumidity: 20% to 80% non-condensing |
| Storage Conditions | Temperature: -40 to 55 degrees CelsiusHumidity: 5% to 99% non-condensing |
| General | |
| Supported Operating Systems (software) |
Microsoft® Windows® 10 (64-bit) Windows Server® 2016 Windows 7 (32-bit, 64-bit) Windows Server 2008 R2 Windows Server® 2019 |
| EMC/EMI Device Class | Class B |
| EMC/EMI Compliance | C-TickCE (EU)FCC (US)ICES-3 (Canada)KC (Korea)VCCI (Japan) |
| Environmental Compliance | China RoHSEU RoHSREACHWEEE |
| Warranty | Three-year limited warranty with free online or telephone support |
